LA-18SUB(MATING LA-208)
SINGLE 18 INCH ULTRA-LOW FREQUENCY SPEAKER
LA-18SUB is an ultra-low frequency speaker specially designed for use with the LA-IOM line array.
The LA-I8SUB is a straight-through speaker box consisting of an 18 straight-through low-frequency speaker unit. This specially designed 18” frequency speaker unit, even under very high sound pressure operating conditions, can provide exceptional cone coverage characteristics and very low thermal compression. The Inverted hole design of the bass reflex is more advanced and more conducive to the flow of air. Compared with the previous products, the LA-I8SUB is more modern, and with the new air hole design, the sound pressure level output is greatly improved.
Application: large and medIum-sized outdoor performances, sports venues and bar main sound expansion.
|
Model
|
LA-18SUB
|
|
Components
|
LF 1*18" (100mm vc/220mm)
|
|
Connectors
|
2*NEUTRLK NL4
|
|
Frequency
Response
|
28Hz-110KHz
|
|
Sensitivity
( 1W/1M )
|
98 dB
|
|
Maximum
|
124 dB
|
|
Maximum
Sound Pressure
|
127 dB
|
|
Rated
Power
|
800W
|
|
Program
Power:
|
1600W
|
|
Peak
Power:
|
3200W
|
|
Nominal
Impedance
|
8Ω
|
|
Box
appearance
|
Black grain paint
|
|

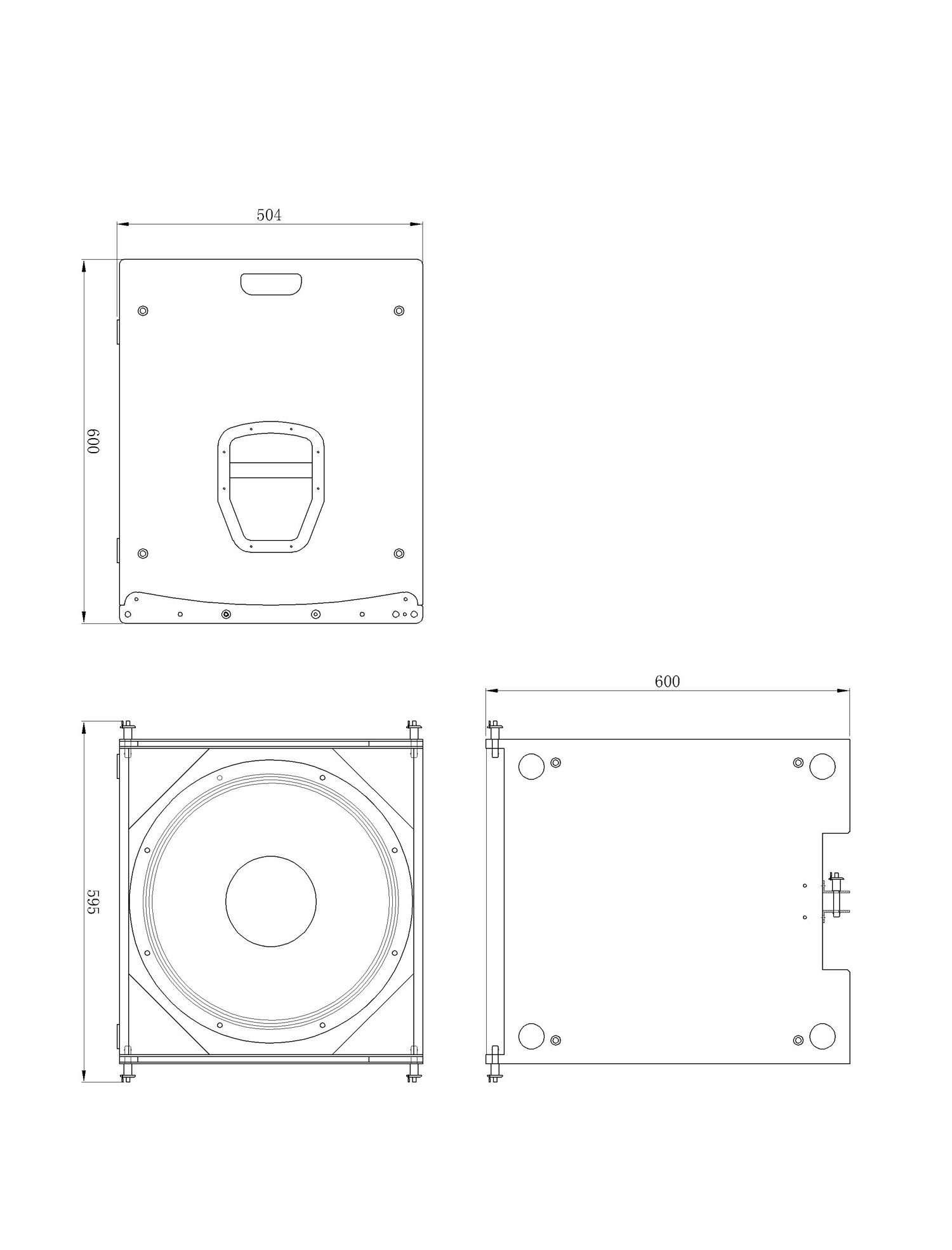

Dimensions(W×D×H):
|
535×600×504mm
|
|
Weight
|
36.5KG
|
