LA-210
Double 10 inch line array speaker system
LA-210 is carefully designed for theaters, sports venues, outdoor performances, and other venues. Inside a high-density plywood box, it consists of two 10 inch high configuration low-frequency drivers and a coverage angle of 75 ° horizontal × Composed of a 75mm neodymium magnetic high-frequency driver on a 15 ° vertical high-frequency horn. Forming a combination with great dynamic margin and greatly reducing the weight of the box, providing extremely high sound pressure/volume ratio.
Application scope: Small and medium-sized outdoor performances, sports venues, and bar owners for sound reinforcement.
Model
|
LA-210
|
Components
|
LF 2*10" (75mm vc/170mm)
|
|
HF 1*3“ (75mm Nd Magnet)
|
Connectors
|
2*NEUTRLK NL4
|
Frequency Response
|
80Hz-18KHz
|
Dispersion angle
|
120*15°
|
Sensitivity ( 1W/1M )
|
116 dB
|
Maximum Sound Pressure
|
136 dB
|
Rated Power
|
HF 100W/ LF 600W
|
Maximum Power
|
HF 200W/ LF 1200W
|
Nominal Impedance
|
16Ω
|

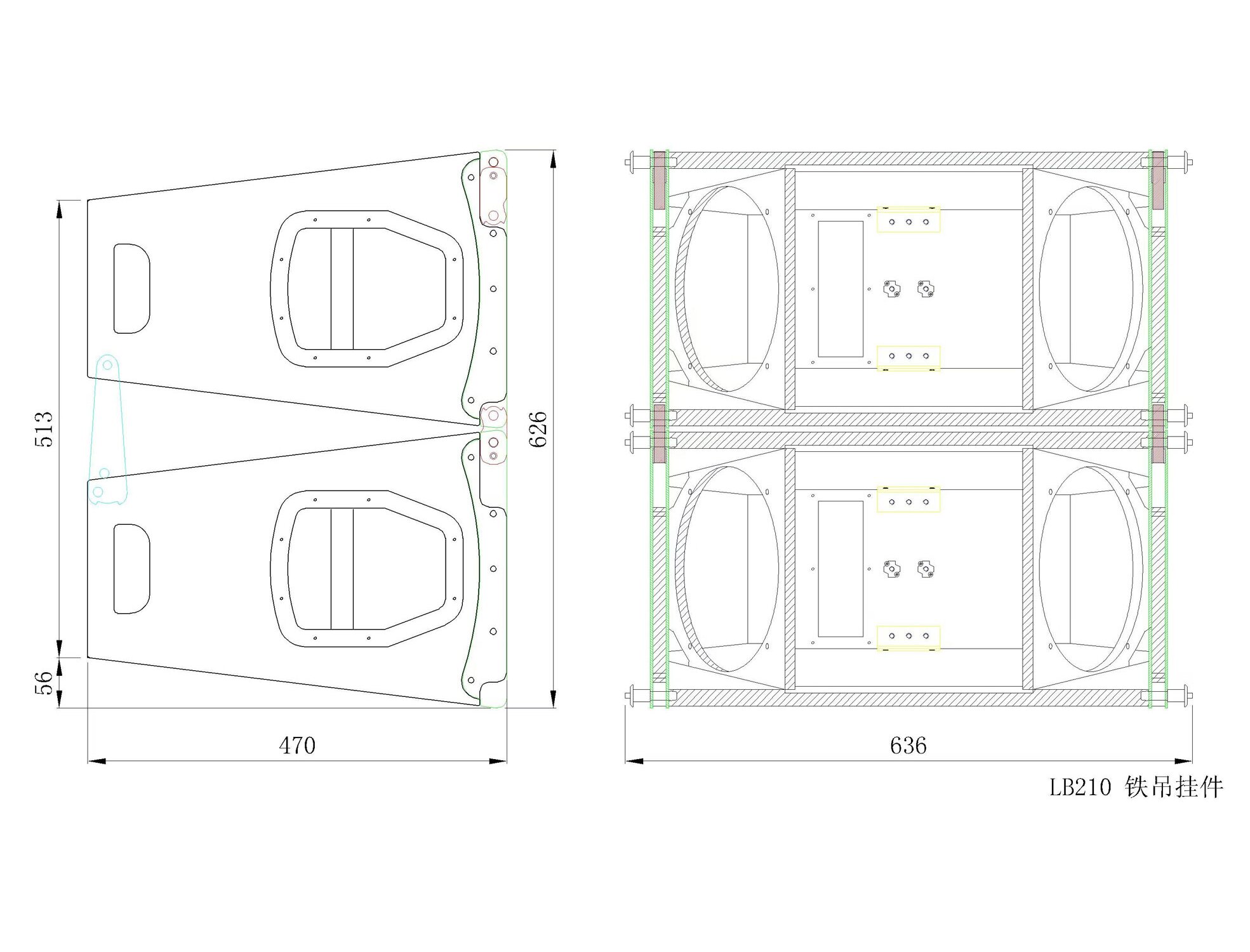

Dimensions(W×D×H):
|
636×470×313mm
|
Weight
|
39.5KG
|
