LA-118SUB(MATING LA-210)
SINGLE 18 INCH ULTRA-LOW FREQUENCY SPEAKER
LA-118SUB is an ultra-low frequency speaker specially designed for use with the LA-210 line array.
The LA-118SUB is a straight-through speaker box consisting of an 18” straight-through low-frequency speaker unit. This specially designed 18” frequency speaker unit, even under very high sound pressure operating conditions, can provide exceptional cone coverage characteristics and very low thermal compression. The inverted hole design of the bass reflex is more advanced and more conducive to the flow of air. Compared with the previous products, the LA-I8SUB is more modern, and with the new air hole design, the sound pressure level output is greatly improved.
Application: large and medium-sized outdoor performances, sports venues and bar main sound expansion.
|
Model
|
LA-118SUB
|
|
Components
|
LF 1*18" (100mm vc/220mm)
|
|
Connectors
|
2*NEUTRLK NL4
|
|
Frequency Response
|
28Hz-110KHz
|
|
Sensitivity ( 1W/1M )
|
98 dB
|
|
Maximum Sound Pressure
|
127 dB
|
|
Rated Power
|
800W
|
|
Maximum Power
|
1600W
|
|
Nominal Impedance
|
8Ω
|
|

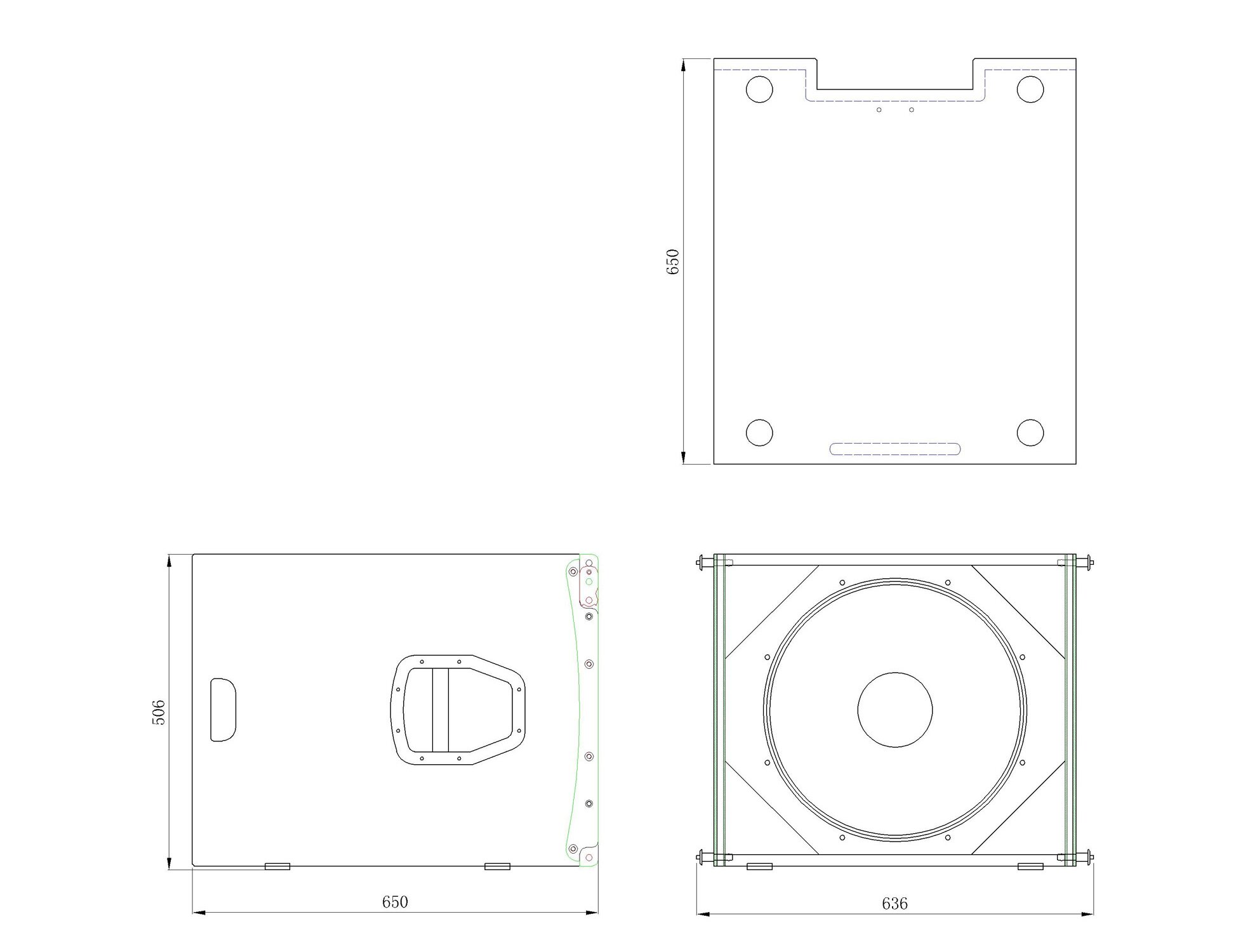

Dimensions(W×D×H):
|
636×650×506mm
|
|
Weight
|
40.5KG
|
