The L210M line array speaker is a small two-channel frequency division system. it provides 70Hz-18KHz(-10db) frequency range with smooth frequency and phase response. Two 1.75" neodymium magnetic hign-frequency compression units and two 10" neodymium magnetic low-frequency units constitute a combination with great dynamic margins, which greatly reduces the body weight and provides extremely high sound prossure/volume ratio.
Applications: small performances, restaurant bars,sports venues and bar main sound amolifications.
Model: | L210M |
Components: |
LF:
2x10" (50mmvc/134mm Nd Magnet) HF: 2x1.75" (44mmvc Nd Magnet) |
Connectors: | 2*NEUTRIK NL4 |
Frequency response: | 70Hz-2kHz+1K2Hz-18kHz |
Sensitivity(1w/1m): | 102DB(LF)+110DB(HF) |
Maximum: | 130dB+132dB |
Maximum Sound Pressure: | 137dB+137dB |
Rated Power: | 600W+150W |
Maximum Power: | 1200W+300W |
Nominal Impedance: | 8Ω(LF) + 8Ω(HF) |
Dispersion angle: | 120° x 7° |
Box appearance: | Black grain paint |

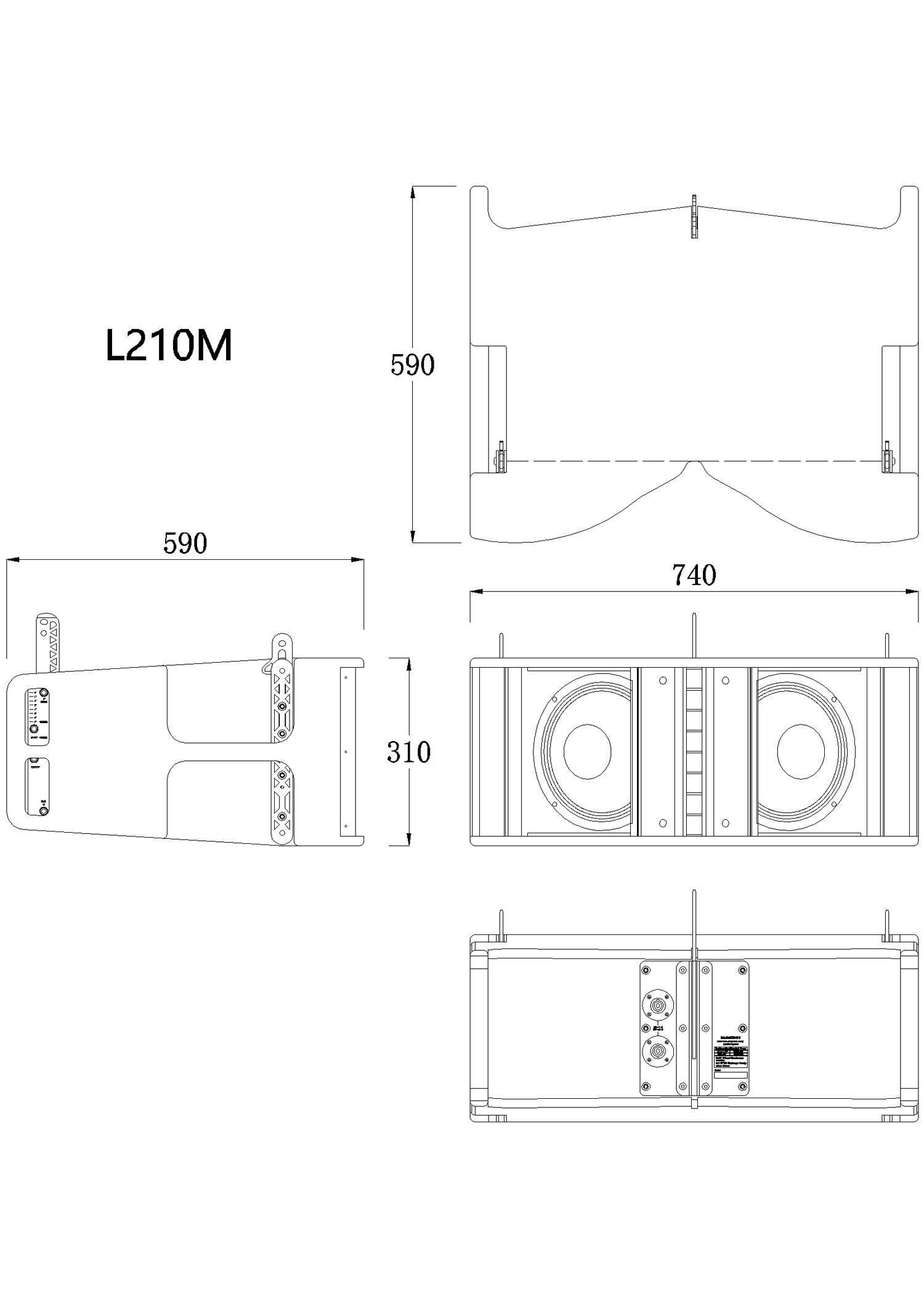

Dimensions(W×D×H): | 740×590×310mm |
Weight: | 33kg |
