The L212M line array speaker is a large 3-channel three-frequency division system whose frequency range is 42Hz-18kHz.This super dynamic combination Is composed of two 75mm (voice coil) neodymium magnetic compression unitsfour 6-inch midrange units and two 12-Inch basso units.
Low and intermediate frequency part applies a pair of 400W 12-inch conic TW units that works in tandem.The intermediate frequency part is composed of 4 high-sensitivIty 6-inch alto units that are Installed at the back of TW units, forming a coaxial structure. An Intermediate frequency phase plug is installed on the surface of alto units, so that the directivity and sensitivity of treble and alto are increased. High frequency part is made of two 75mm (voice coil) neodymium magnetic compression units, pointing at the horn and form a consistent wave front. High frequency part whose sensitivity Is over 113dB enables the L212M to produce a peak sound pressure output up to 139dB.
The body of L212M is trapezoid, the clearance between the speaker and the box is reduced to the minimum. The adjustable angle of each speaker is 0 to7.5 degrees, and each degree is adjustable. The suspenders are made of high strength steel. When hanging 16 speaker systems, the safety factor of the suspenders is 7:1. The wooden case is composed of 18mm face plate and 15mm splint,with wear-resistant gray-dotted waterproof paint on its surface. Two handles are embedded on both sides of the speaker for easy handling. Two NL8MP eight-core sockets are on the rear terminal block. Speaker unit are protected by black perforated iron mesh.
Application: Large and medium outdoor performances, sports venues and bar main sound reinforcement.
| Model： |
L212M |
| Components： |
LF: 2x12"(75mm vc/180mm) |
|
|
HF: 2x3"（75mm Nd Magnet) |
|
|
MF: 4x6"（150mm Nd Magnet) |
| Frequency response： | 42Hz-18KHz |
| Sensitivity(1w/1m)： |
108dB |
| Maximum Sound Pressure： | 139dB |
| Rated Power： |
HF 200W/MF 320W/LF 800W |
| Maximum Power： |
HF 400W/MF 640W/LF 1600W |
| Nominal Impedance： |
4Ω |

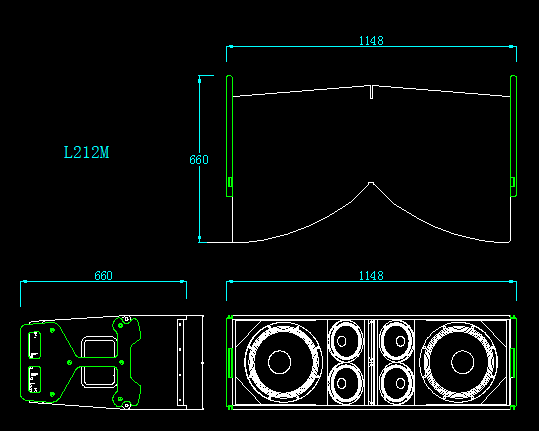

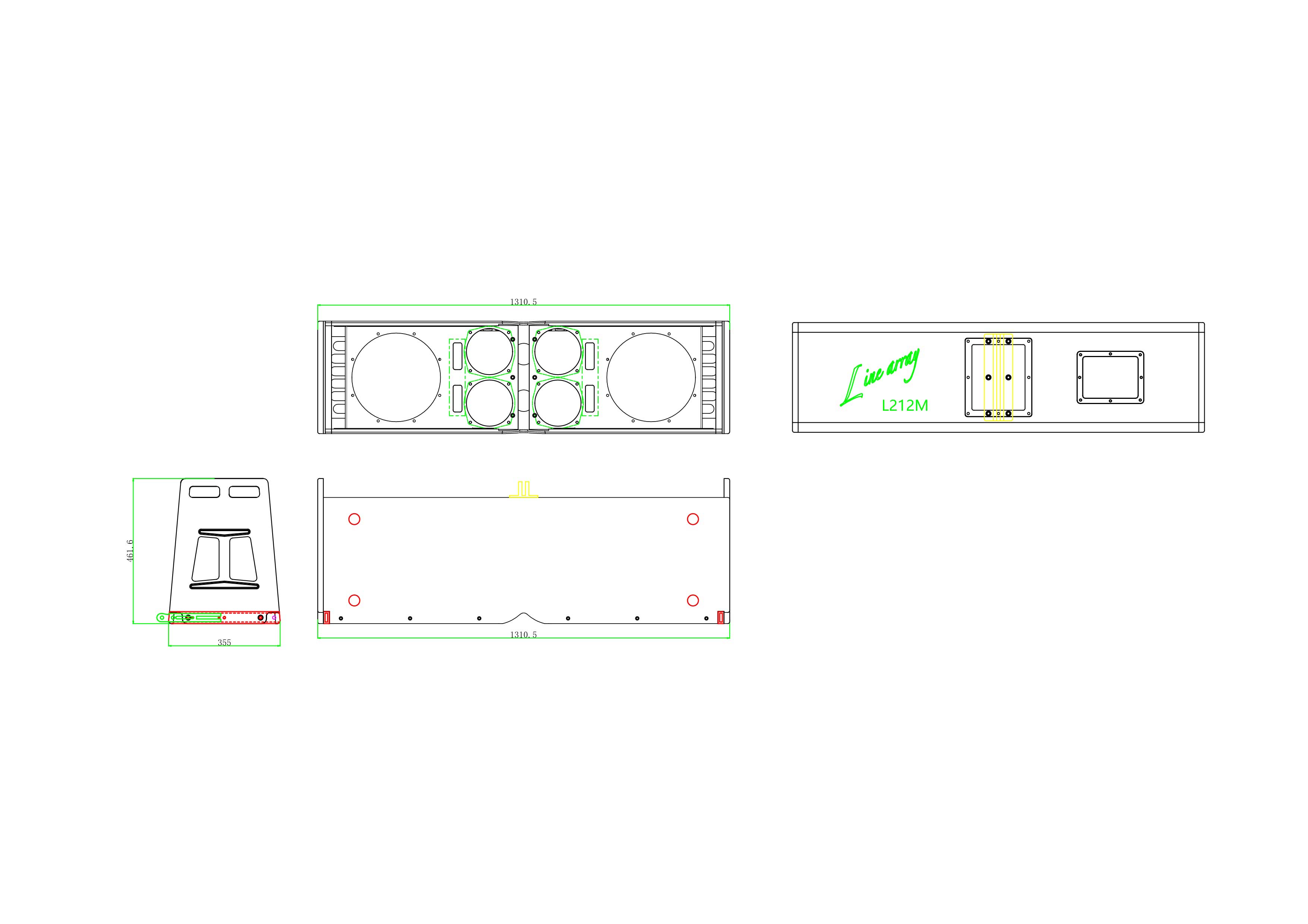

| Height x Wight x Depth: | 389×1160×630(HxWxD) |
| Weight（kg）： | 55 |
