The L15M line array speaker is a small two-channel frequency division system. It provides 40Hz-20KHz(-10db) frequency range with smooth frequency and phase response One 3" neodymium magnetic high-magnetic low-frequency unit cnstitute a combination with great dynamic margins, widch greatly reduces the body weight and provides extremely high sound pressure/volume ratio.
Applications: small per formances, restaurant bars, sports venues and bar main sound amplifications.
| Model: | L15M |
| Components: |
LF:
1x15" HF: 1x3" |
| Frequency response: | 40Hz-2kHz+500Hz-18kHz |
| Sensitivity(1w/1m): | 105DB(LF)+109DB(HF) |
| Rated Power: | 600W+80W |
| Maximum Power: | 1200W+160W |
| Nominal Impedance: | 8Ω(LF) + 8Ω(HF) |

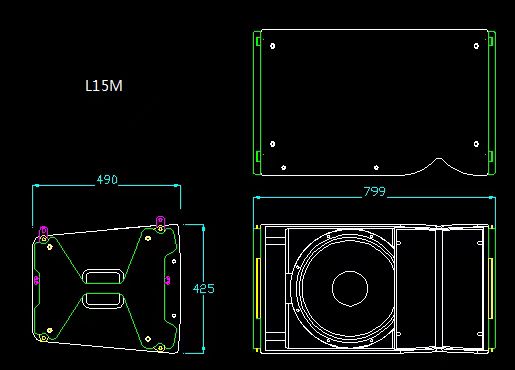

| Dimensions(W×D×H): | 799×490×425mm |
| Weight: | 35kg |
