type | 10-inch two-division front-guided full-frequency speaker |
Unit configuration | LF: 10 "bass unit, HF: 1.4" compression driver |
frequency response | 60Hz-20kHz±3dB |
Rated power | 300W |
peak power | 600W |
sensitivity | 96dB |
Maximum sound pressure level | 119dB |
Standard impedance | 8 Ω |
Radiation angle | 90°(H) × 40°(V) |
Wiring mode | 2 x Neutrik NL 4 |
Hanging method | M8 threaded hole |

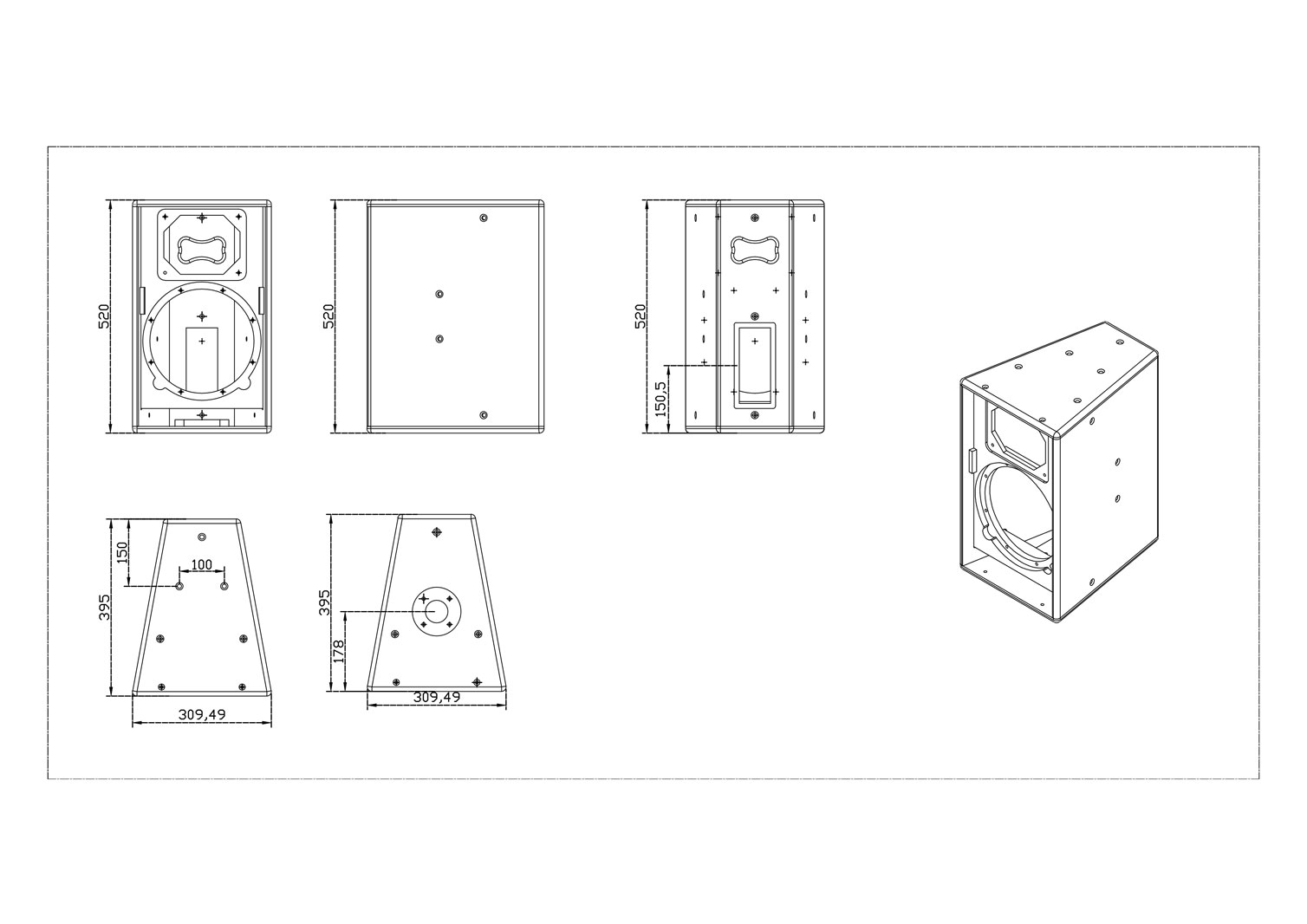

Dimension (mm) | three hundred and ten × three hundred and ninety-five × 520(WxDxH) |
Net weight (kg) | 16 |
