LA-212
Three unit two-way linear array full frequency speaker
LA-212 is carefully designed for theaters, sports venues, outdoor performances, and other venues. It consists of two 12 inch high-frequency drivers and a 75mm neodymium magnetic high-frequency driver on a high-frequency horn with a coverage angle of 80o horizontal x 10o vertical inside a high-density plywood box. Forming a combination with a large dynamic margin and significantly reducing the weight of the enclosure, providing an extremely high sound pressure/volume ratio.
Application scope: Medium to large outdoor performances, sports venues, and bar main sound reinforcement.
|
System type
|
Three unit two-way speaker
|
|
Rated power
|
LF:700W，HF:100W；
|
|
peak power
|
LF:1400W，HF:200W；
|
|
Nominal impedance
|
High frequency 8 ohms, low frequency 8 ohms
|
|
High pitched unit
|
1 × 3 inch (75mm diaphragm) neodymium magnetic compression driver
|
|
Bass Unit
|
2 × 12 inch (75mm voice coil) ferrite mid low frequency unit
|
|
sensitivity
|
LF:102dB，HF:110dB
|
|
Frequency response
|
55Hz～20KHz
|
|
Diffusion angle
|
80 ° (horizontal) X 10 ° (vertical)
|
|
Maximum sound pressure level
|
133dB
|
|
Crossover
|
1.2KHz enclosure material
|
|
Box material
|
Multi layer laminated plywood
|
|
Spray color
|
Black polyurea sand
|
|
Protective mask
|
Black perforated steel+acoustic cloth
|
|
Wiring method
|
LF:1+1-； HF:2+2-
|
|

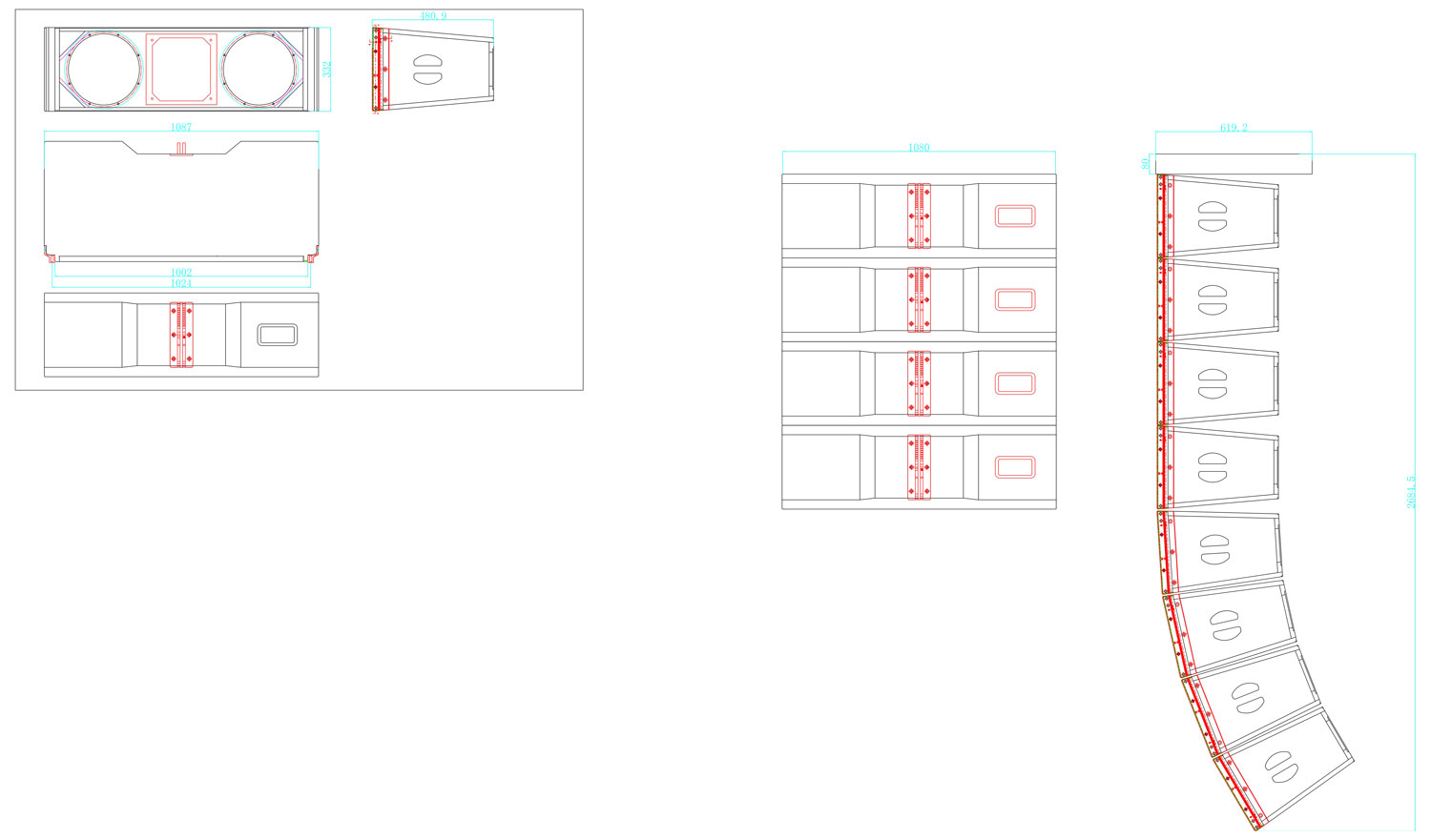

Dimensions(W×D×H)
|
1087×481×332mm
|
|
Net weight
|
48.6Kg
|
